Map Bioregional Change Metrics Between Categorical Raster Layers

Source: R/map_bioregDiff.R
map_bioregDiff.Rd

Calculates five complementary indices that quantify how the categorical (e.g. bioregion / cluster) label of each raster cell changes across a temporal or scenario stack of rasters:

  • Difference count – total number of times a cell’s label differs from the first layer.

  • Shannon entropy – information‐theoretic diversity of labels within the cell’s time-series.

  • Stability – proportion of layers in which the label is identical to the first layer (1 = always unchanged, 0 = always different).

  • Transition frequency – sum of binary change maps between successive layers (how often a change occurs between any pair of neighbours).

  • Weighted change index – cumulative dissimilarity-weighted change where the weight is derived from the empirical frequency of transitions between all pairs of labels.

Usage

map_bioregDiff(raster_input, approach = "all")

Arguments

raster_input

A multi-layer SpatRaster or a list of single-layer SpatRaster objects representing the same spatial extent/resolution.

approach

Character string specifying the metric to return: "difference_count", "shannon_entropy", "stability", "transition_frequency", "weighted_change_index", or "all" (default) for a five-layer stack containing every metric.

Value

A SpatRaster:

  • single-layer if approach is one of the named metrics;

  • five-layer (names: Difference_Count, Shannon_Entropy, Stability, Transition_Frequency, Weighted_Change_Index) if approach = "all".

Details

The dissimilarity weights for the weighted change index are built from the observed transition table of successive layers, normalised to lie between 0 and 1 (larger = rarer transition). The function accepts either a multi-layer SpatRaster or a plain list of single-layer SpatRasters, which is internally concatenated with terra.

See also

app, rast

Examples

## -------------------------------------------------------------
## Minimal reproducible example with three random categorical
## rasters (four classes, identical geometry)
## -------------------------------------------------------------
if (requireNamespace("terra", quietly = TRUE)) {
  set.seed(42)

  r1 <- terra::rast(nrows = 40, ncols = 40,
                    vals  = sample(1:4, 40 * 40, TRUE))
  r2 <- terra::rast(r1, vals = sample(1:4, ncell(r1), TRUE))
  r3 <- terra::rast(r1, vals = sample(1:4, ncell(r1), TRUE))

  r_stack <- terra::rast(list(r1, r2, r3))
  names(r_stack) <- paste0("t", 1:3)

  ## 1. All five metrics
  diff_all <- map_bioregDiff(r_stack, approach = "all")
  print(diff_all)

  ## 2. Just the Shannon-entropy layer
  ent <- map_bioregDiff(r_stack, approach = "shannon_entropy")

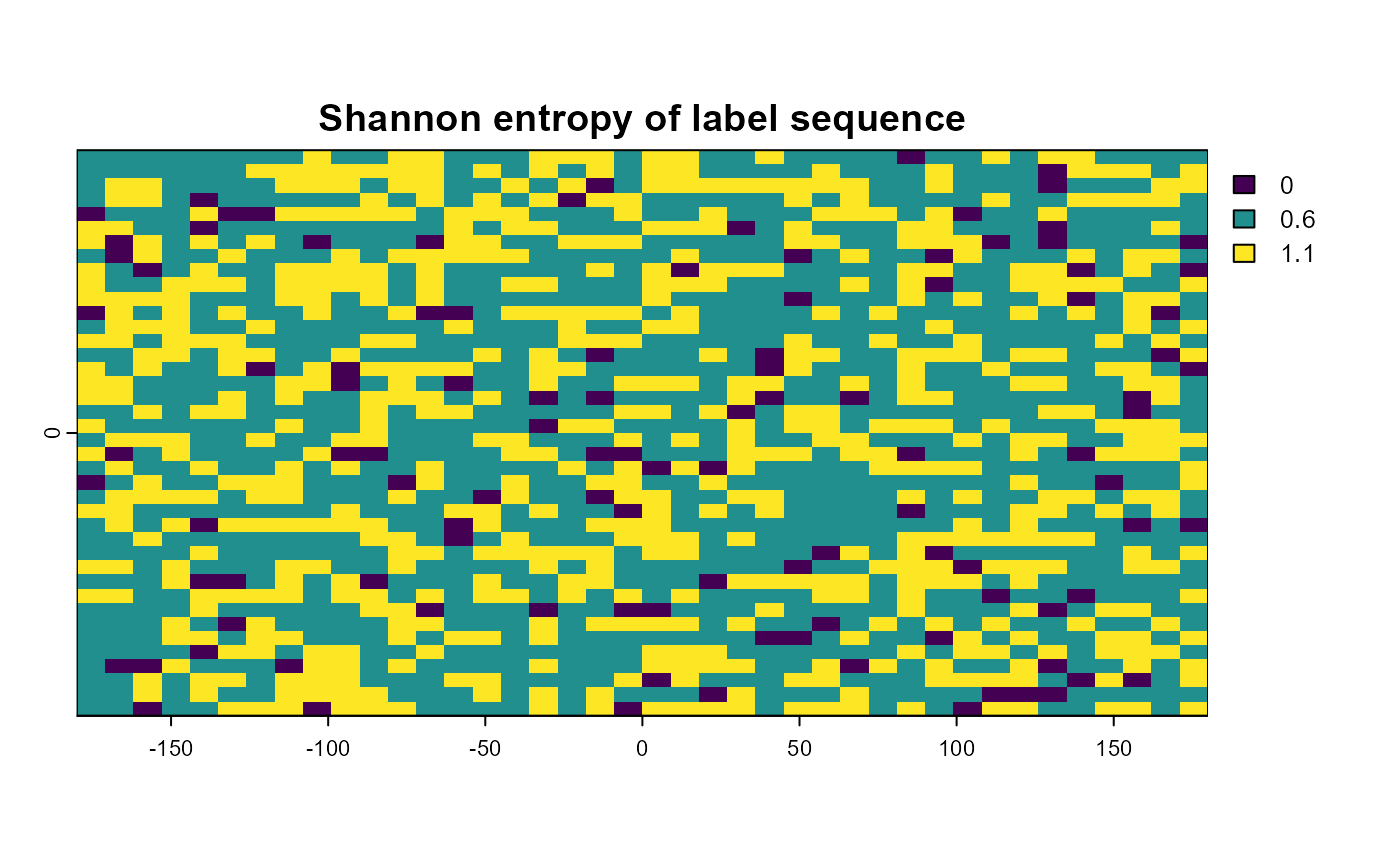

  terra::plot(ent, main = "Shannon entropy of label sequence")
}
#> Loading required package: viridisLite
#>
#> Attaching package: 'purrr'
#> The following object is masked from 'package:data.table':
#>
#>     transpose
#> class       : SpatRaster
#> size        : 40, 40, 5  (nrow, ncol, nlyr)
#> resolution  : 9, 4.5  (x, y)
#> extent      : -180, 180, -90, 90  (xmin, xmax, ymin, ymax)
#> coord. ref. : lon/lat WGS 84 (CRS84) (OGC:CRS84)
#> source(s)   : memory
#> names       : Differ~_Count, Shanno~ntropy, Stability, Transi~quency, Weight~_Index
#> min values  :             0,      0.000000,         0,             0,     0.0000000
#> max values  :             2,      1.098612,         1,             2,     0.3259912
